HSS DIN 8002 Standard Solid Gear Hobs with M1~M20
2023-05-09 09:05:34
jiangxingTools
2362
HSS DIN 8002 Standard Solid Gear Hobs with M1~M20
gear hobs m1-m20, PA=20°
HSS M2, M35 material with AlCroNite Pro coating
the number of starts=1
accuracy class A, AA

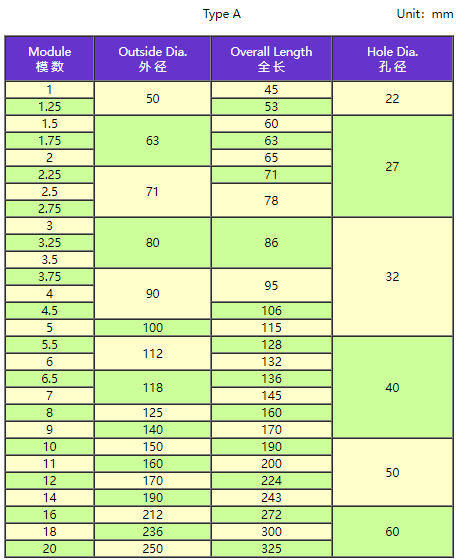

bore diameter: 22mm, 27mm, 32mm, 40mm, 50mm and 60mm
Please contact us for more details on gear cutting tools and hobs.
