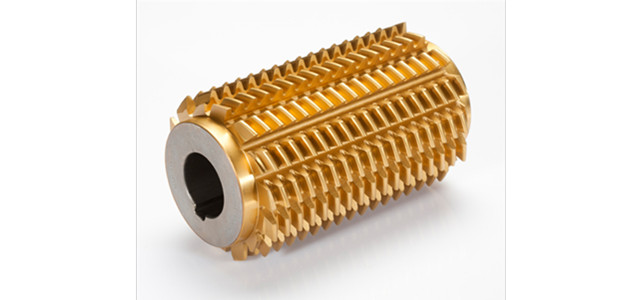

Involute Spline Hob

Involute Spline Hob

Module: m1-m10

Pressure angle: PA30, PA45

Tooth Profile: DIN5480, DIN5482 standard

Quality: Class A

Material: M2, M35,S390

Coating: TiN, AP

A Spline gear is used when the power transmits in the same rotating direction. The tooth profile is an involute profile. The specification is needed when ordering, as each country has a standard which follows their module value.

▲Fitted surface of tooth ▲Fitted major-diameter

ex) Germany’s industrial spline standard (pressure angle 30° ANSI
B92.2: USA, inch system standard JIS/KS: D2001, B1603 standard)

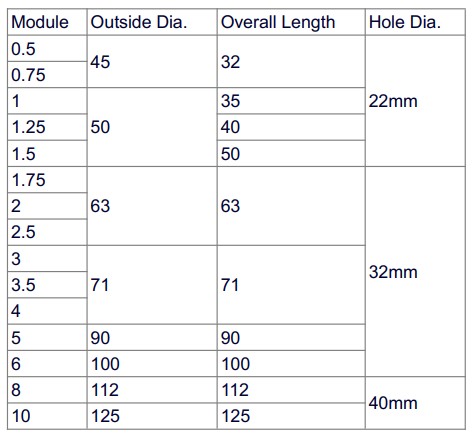

Specifications: Involute Spline Hob with Module 1-10 PA30

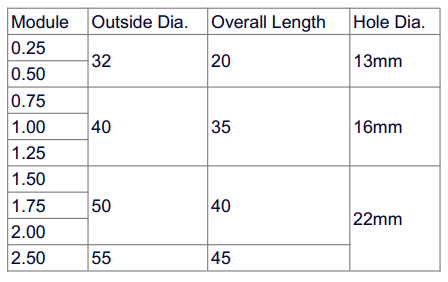

Specifications: Involute Spline Hob with PA45°

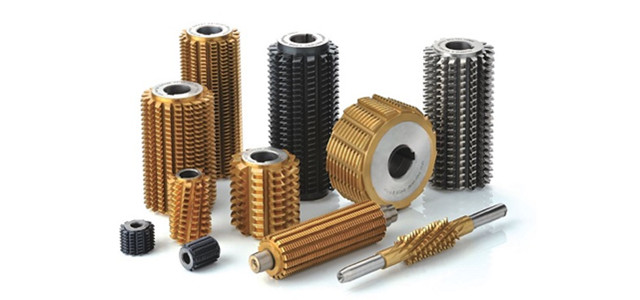

The complete range of hobs produced by us, besides large modules hobs, is completed by

- Solid gear hobs from mod 0.5 -mod. 22 mm

- Spline hobs (parallel or involute such ASA)

- Roller chain hobs

- Carbide hobs

- Worm wheel hobs, shank type or bore type

- Pulley hobs

- HM hobs

The precision class of hobs obviously is regulated by international standards such Din 3968 (class A and class AA), Any special requests on involute spline hob, please contact us for more details.
